Pellet ceramic igniters

Quick ignition and long lifespan components praised by the whole biomass heating industry.

Pellet ceramic igniter

Ceramic igniter for wood pellet stoves and boilers

Powerful

The model pledge by top pellet heating appliances manufacturers. High reliability, fast ignition, long history and simplicity of design.

Drawing

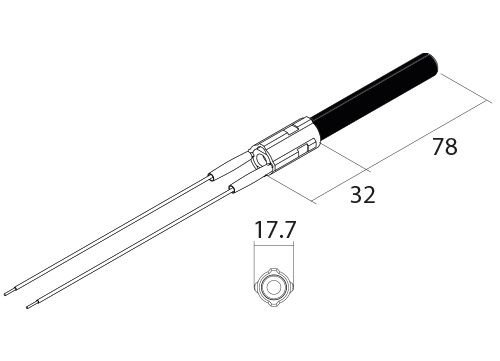

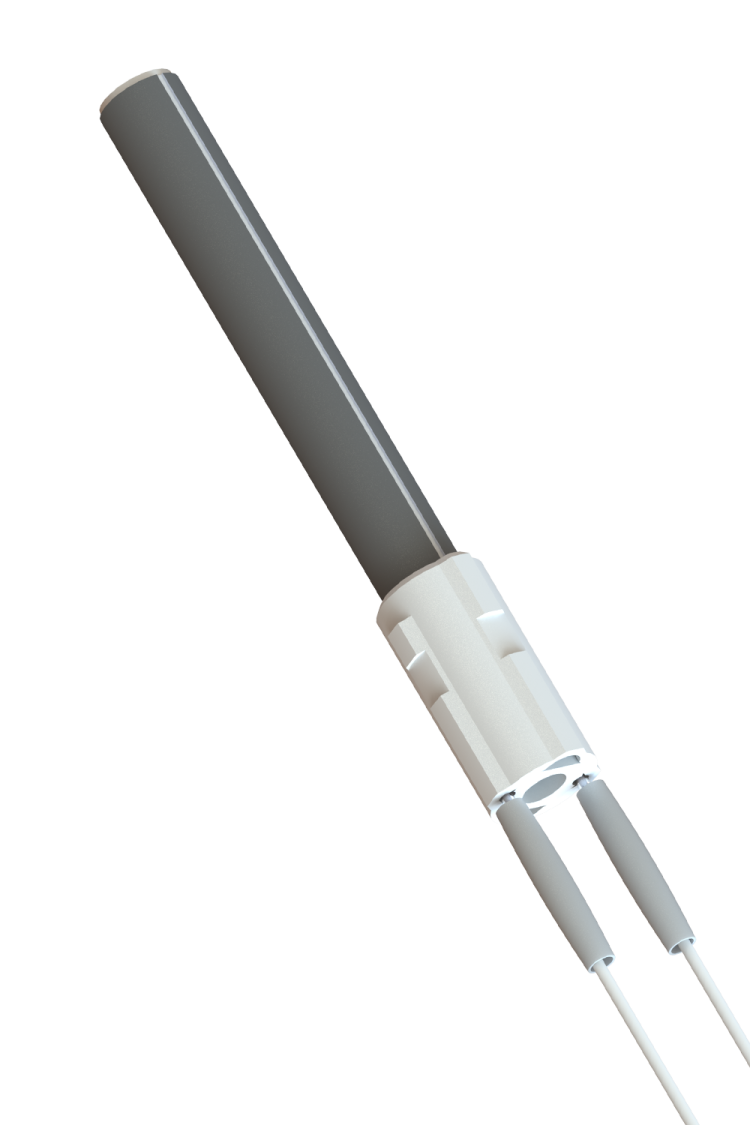

PSx-2-240-B ceramic igniter for pellet stoves

Fast

Long rating life and ignition in 60~90s at 1000°C steady temperature. Ceramic heaters are simply the best for lighting pellets.

Download catalogue

Thread bushing igniter for wood pellet stoves

Retrofit

A design to retrofit in most of wood pellet stoves, boiler or burner. Flangeless or 3/8" thread, find the design for your system.

Compare products

Igniting wood pellets, chips and other biomass fuels

Introducing the FKK ceramic biomass igniter range, an advance in ignition technology for solid fuels.

FKK Corporation specialises in ceramic hot surface igniters and has many years experience of working closely with customers to develop bespoke solutions for innovative appliance manufacturers. We are a trusted manufacturer of hot surface ignition products to many industry sectors.

These advanced igniters are simply the best for lighting pellet and biomass burners. They use only a fraction of the energy required by hot air fans and ignition blowers and will light all fuel types. Ideal for wood pellets, chips, straw, corn etc.

With a considerably higher temperature, around twice that of traditional metal sheathed products, ignition times are reduced to as little as 60 seconds. This makes them significantly more economical in use.

Applications

Biomass

Pellet stove
Pellet boiler
Pellet burner
Pellet BBQ/grill
Wood chips boiler
Other solid biomass burner

Other

Laboratory equipments
Other specific equipments

Ceramic ignition technology benefits

Speed

Time to ignition 60~90 seconds
Lifespan

Long lasting (nearly non-aging)
Energy saving

A fraction of the energy consumption compared to conventional cartridge or element heater
Reliability

Tested to 150,000 cycles, 40 years of market feedbacks and enhancements
Emission decrease

Reduces appliance particles emission thanks to shorter ignition phase
Temperature

1000°C at steady-state temperature
Compatibility

Easy to install and retrofit. Fits any steel tube with an inner diameter of ≥16~18mm
Ignition

Ignite wood pellet, wood chips, split logs, straw and other solid biomass
Security

Cannot overheat even with blower failure due to PTC property. Fully electrically insulated with no exposed electric contacts
Voltage

Available in 100V / 120V / 230V AC
Robustness

Impervious to oxidation and corrosion
Certification

Comply with RoHS, REACH, CE regulation. TUV Sud and TUV Rheinland certified. UL certified wiring possible (200 to 500°C heat resistant wire)

A revolutionary way to ignite biomass

PSx series igniters revolutionize biomass heating appliances ignition process. FKK developed several types to fit in every appliances.

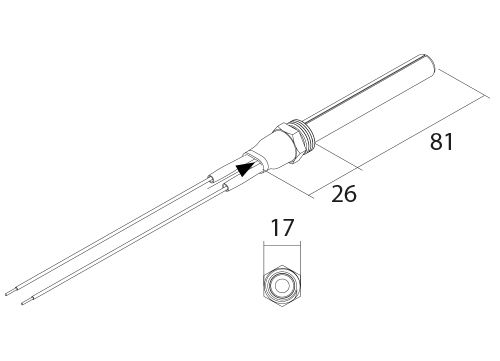

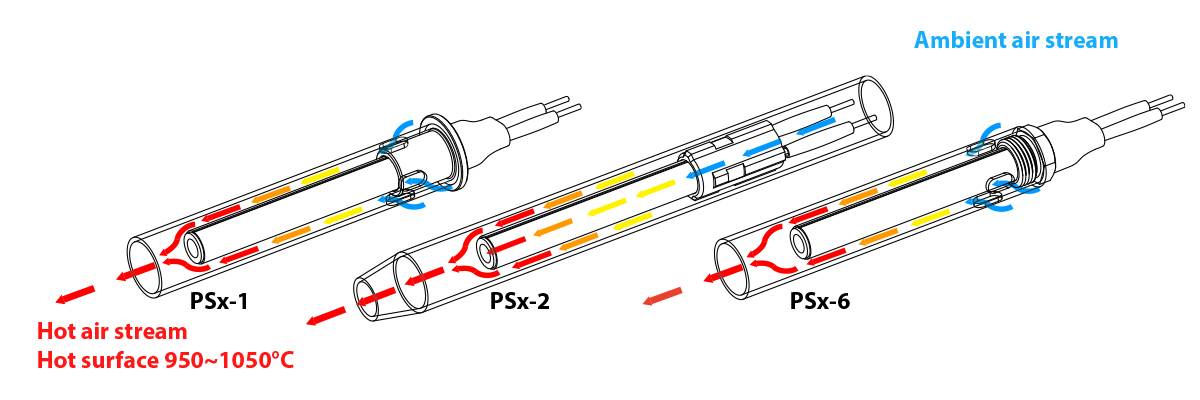

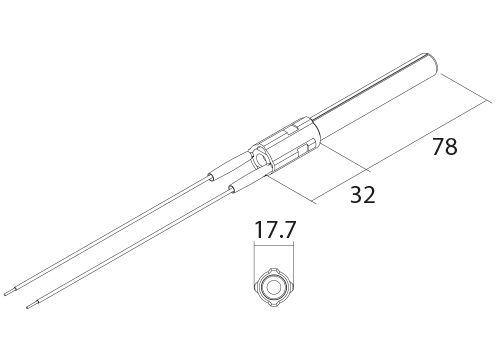

Tubular radiant structure type (Blowing air system: PSx-2 /PSx-7) ceramic igniters have a through hole that let air through the heating element body. With this structure, ignition performance can be increase by 1.4 times compare to metal cartridge heater.

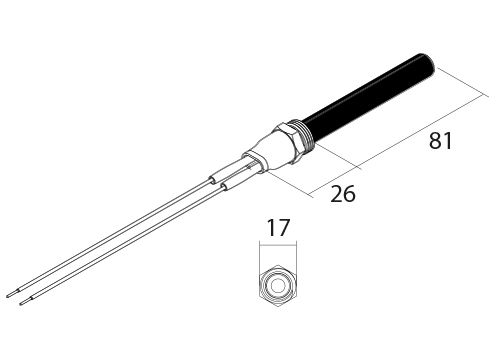

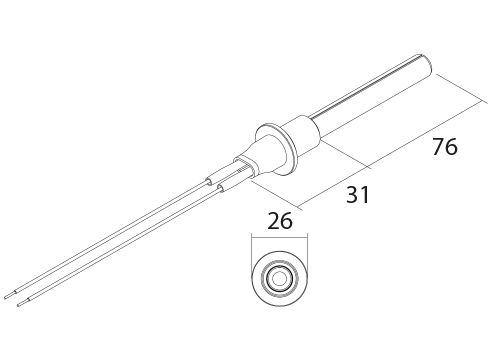

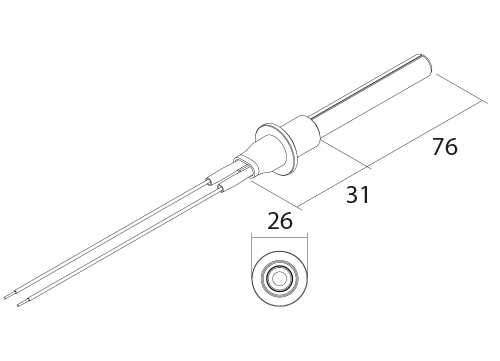

External radiant structure type (PSx-1 / PSx-6) ceramic igniter heat the surround air for indirect ignition of pellet. These models are economical and more easy to install into airtight systems.

Universal solution

PSx series ceramic igniters fit in wood pellet, woods chips or any other biomass appliances. No matter the appliance, whether it's a stove, boiler, grill, or burner, our cutting-edge technology ensures quick and reliable ignition in every system.

Pellet ceramic igniter with pellet pot burner

More powerful ignition while consuming less

PSx series ceramic igniters revolutionize biomass heating appliances ignition process. It consume less energy (300W) compare to tradionatl metal cartridge igniter but reach 1000°C at steady-state temperature allowing an ignition of 60~90 seconds.
