1 day 1 igniter: day 3 - PSx-6 / PSx-7

In a new series of post we are treating each day 1 model of ceramic igniter. The advantage of each design and how to use it.

On day 3 we will present you the PSx-6 and PSx-7 Hex thread flange alumina ceramic igniter model. This model has been originaly developed for the retrofiting of wood pellet stove appliances.

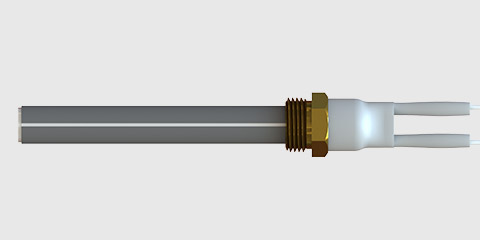

PSx-7 ceramic igniter top

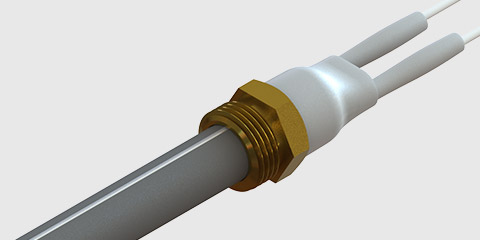

PSx-7 ceramic igniter round ceramic flange details

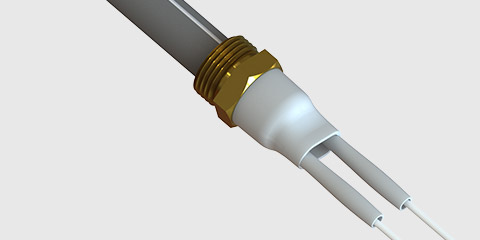

PSx-7 ceramic igniter rear parts details
PSx-7 ceramic igniter in position in burner pot

History and development

PSx-6 and PSx-7 alumina ceramic igniter were developped in year 2013 to answer to need of pellet stove manufacturer to retrofit their existing system with ceramic igniter. With their standard size Hex G3/8" thread bushing these models are perfectly adapated to wood pellet stove retrofiting. The PSx-6 model are hermetic (no air can pass in the tube) while in contrary PSx-7 model have an open tube to let air pass through the inner tube and take advantage of inner heat for a faster ignition.

PSx-6 and PSx-7 ceramic igniter comparison

Today these models are widely use in many pellet stoves, pellet boiler, pellet burner and also pellet smoker grills BBQ across the world.

Advantages

  • Designed specificaly for wood pellet ignition in pellet stoves
  • The industry standard G3/8" Hex flange bushing make it is easy to install and retrofit with old system
  • Provided that the installation tube is not too long, no change is necessary to install it
  • PSx-6 is well adapted to hermetic stove design
  • With PSx-7 model air can go through the tube to increase ignition speed and radiant effect
  • Powerful 300W heating element: can ignite all kind of biomass and even humid pellet = no ignition failure

Application of use

  • Wood Pellet stove
  • Wood pellet boiler
  • Wood pellet burner
  • Wood pellet BBQ / smoker
  • Wood chips boiler
  • Biomass combi boiler (dual pellet/wood)

Technical data

PSx-6-240-B

G3/8" Ø17mm hex flange

Hermetic system

2D Drawing  3D Drawing

3D Step Drawing

Data-sheet

PSx-7-240-B

G3/8" Ø17mm hex flange

Air blowing through system

2D Drawing  3D Drawing

3D Step Drawing

Data-sheet
